CUBES

Materials

Surface

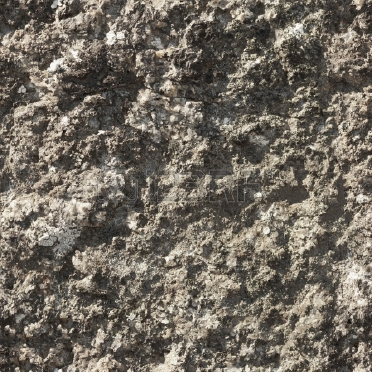

in its natural state; unprocessed.

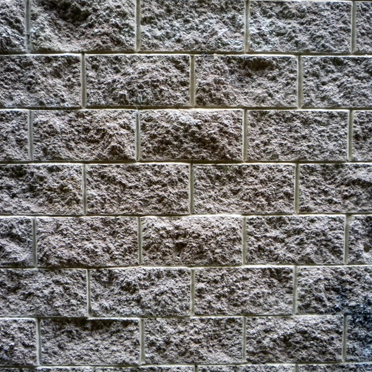

fissured longitudinally; natural appearance.

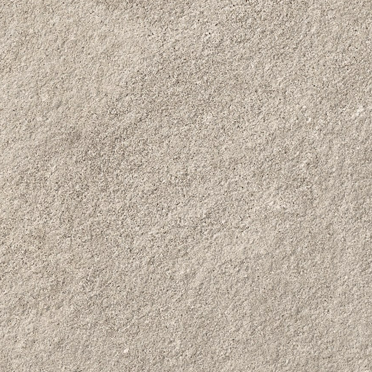

having surface indentations produced or appearing to have been produced by a special tool

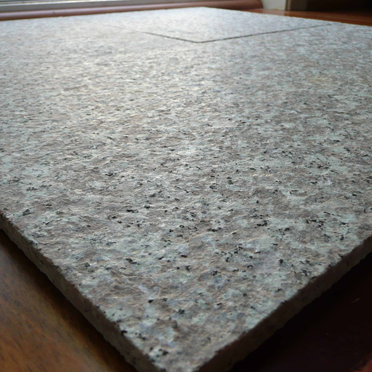

high temperature treatment that granitic rocks’ surfaces are subjected in order to obtain a rough, cratered and vitreous surface. The final appearance of the stone is rustic.

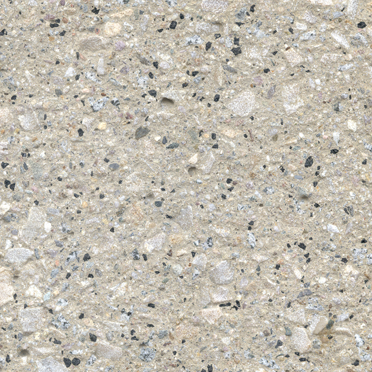

roughen or clean (a surface) with a jet of sand driven by compressed air or steam.

polished but not shiny; rustic surface.

Layout

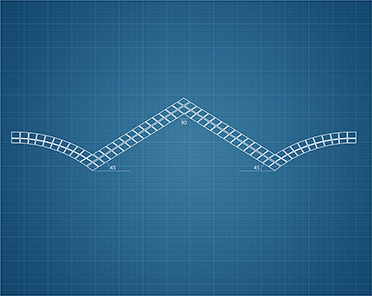

V - Form

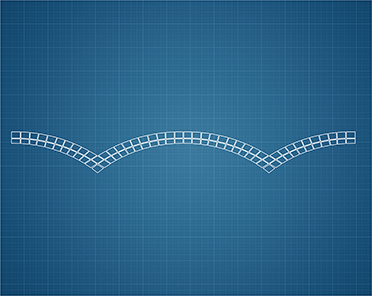

Arch Form

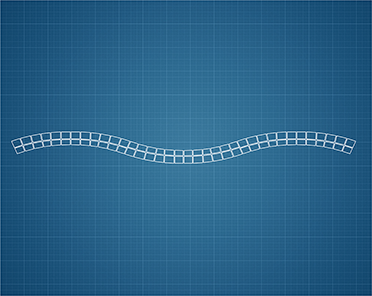

Curve Form

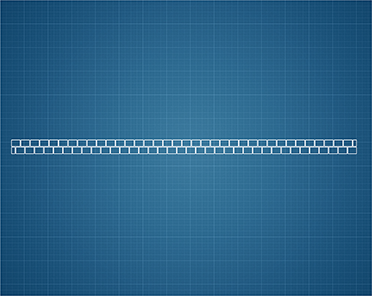

Straight Form

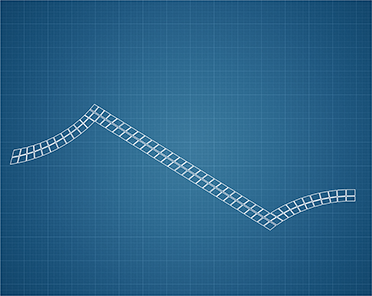

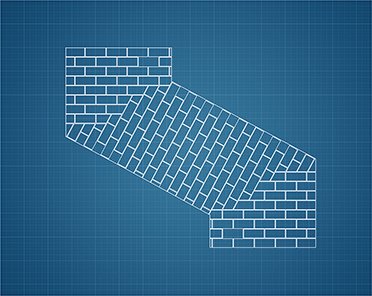

Diagonal Form

Click to see more images

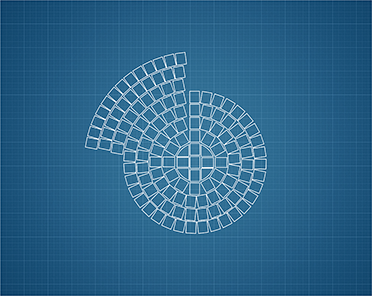

Circle Form

Click to see more images

Corners of Road

Click to see more images

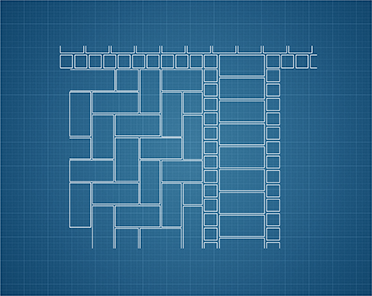

Different Designs

Click to see more images

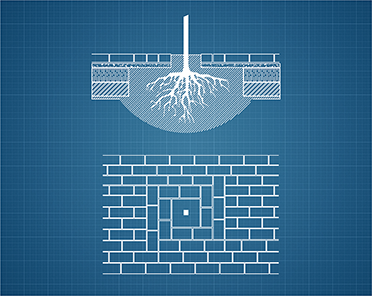

Splices with other Elements

The mortars and the glues

Mix calculations
For 1 m3
of dry sand
  • From 800 kg to 1100 kg of cement.
  • From 400 kg to 1000 kg of hydrated lime.

Cementitious adhesive are used according to recommendations of the manufacturer.

Sand grain sizes

JOINTS

  • 1,5 – 2 mm
  • 2 – 10 mm
  • > 10 mm

JOINTS

  • 1,5 – 2 mm
  • 2 – 10 mm
  • > 10 mm


TYPES OF MORTAR FOR JOINTS
o Cementitious.
o Reactive Resins.

SAND JOINTS
They can be used in all cases except those:
o Heavy rains or where there is going to be too much water.
o Heavy windy zones.
o When the joint is more than 5 mm.
